This compact yet powerful marine VHF radio with DSC and built-in GPS and IPX7 waterproof rating and 25W F.P is the perfect addition to any vessel
Main Functions:
- Dual Receiver, Independent DCS Dedicated Receiver
- Manually Input GPS Latitude and Longitude and Time
- IPX7 Waterproof (1m Depth of Water for 30 Minutes)
- Speaker Vibration Draining Function
- Weather Channel Alarm
- Dual/Tri-watch Functions
- Scan: Normal Scan and Priority Scan
- DSC Call Reception and Transmission Records Can be Queried
- Standard NMEA Interface （RS-422 Protocol )
- Full not Matrix Display
- Channel Number Display Digits Selectable: 3 Digits (01B)/4 Digits(2001)
- Built-in GNSS Mouble, Support GPS, GLONASS, SBAS, Satellite-based Augmentation
- System(WAAS/EGNOS/MSAS/GAGAN) (Only for RS-509MG)
- Simple Combination of Arrow Keys and Programmable Soft Keys for Smooth Operation
- Support Latest Marine Channel Standards and DSC Protocol Standards.
- DSC Distress Calls in 11 Categories, All DSC Calls in 3 Security Categories
Current Price: $140 for regular model and $156 with GPS Anthena
Specifications:
- Frequency: TX: 156.000-162.000MHz, RX: 156.000-163.425MHz
- RF Power: 25W/1W
- Modulation Mode: 16K0G3E(FM), 16K0G2B(DSC)
- Frequency Stability: ±5ppm
- Power Supply: DC13.8V (±15%)
- Channel Spacing: 25kHz
- Operating Temperature: -20℃~+60℃
- Antenna Impedance: 50Ω
- Output Impedance (Audio): 4Ω
- Channel Group: USA, INT, CAN

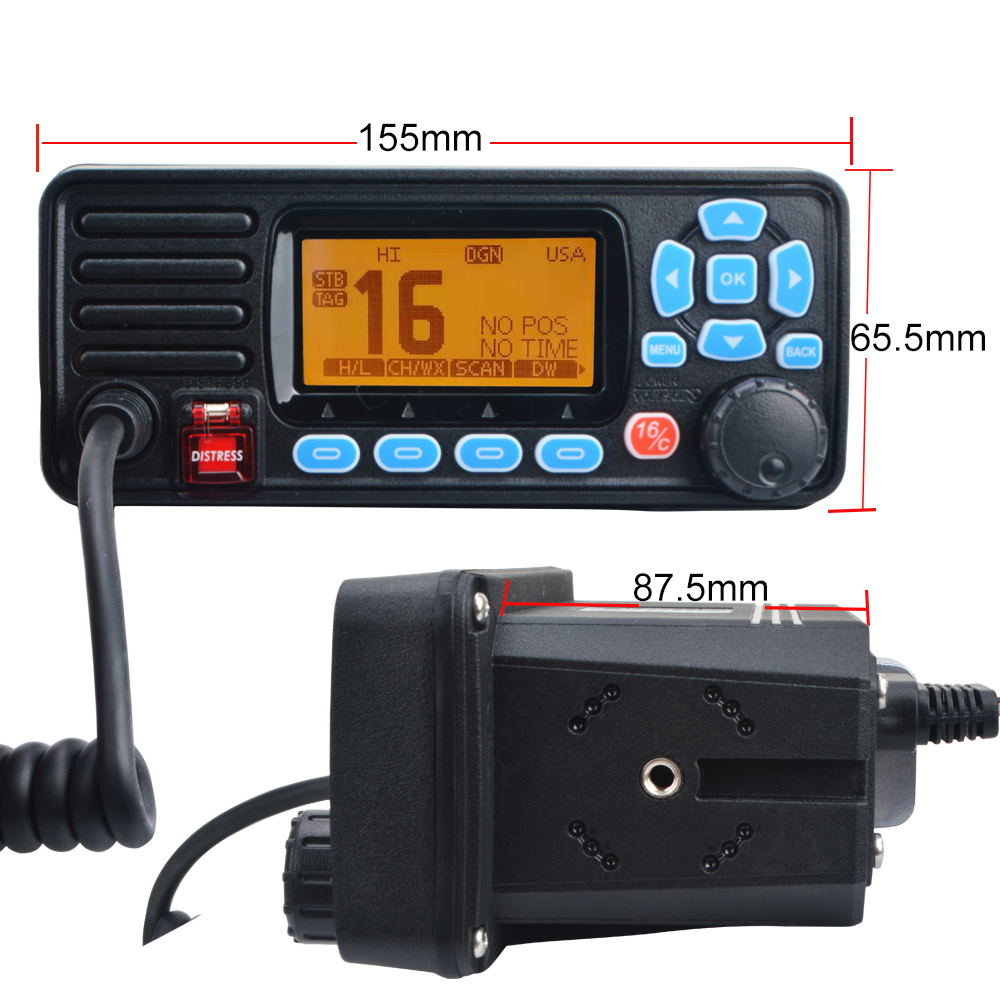

- Dimensions (WxHxD): 155×68×86mm
- Weight: 721g (Hand MIC Included)
Transmitter:
- Output power: 25W/1W
- Max frequency deviation: ±5.0kHz
- Adjacent channel power: ≥70dB
- Audio harmonic distortion: ≤10%
- Input resistance:2kΩ
Receiver:
- Sensitivity: ≤0.2uV
- Squelch sensitivity：≤0.2uV
- Adjacent channel selectivity: ≥70dB
- Spurious response rejection ratio: ≥70dB
- Intermodulation rejection ratio: ≥70dB
- Max current: ≤1.5A
- Audio output power: ≥4.5W(10%)
- GPS signal Format.: NMEA0183-2.0
- Output impendence: 4Ω (Speaker)
DSC Operation
- MMSI Code Programming
- ATIS ID Programme
- DSC Address ID
- Distress Call
- Individual Call
- Group Call
- All Ships Call
- Position Request Call / Polling Request Call
- Test Call
- DSC Log
- Multiple-task Mode
NMEA Formats
- NMEA Formats(In): RMC, GGA, GNS, GLL, VTG
- NMEA Formats(Out): DSC, DSE, RMC, GSA, GSV

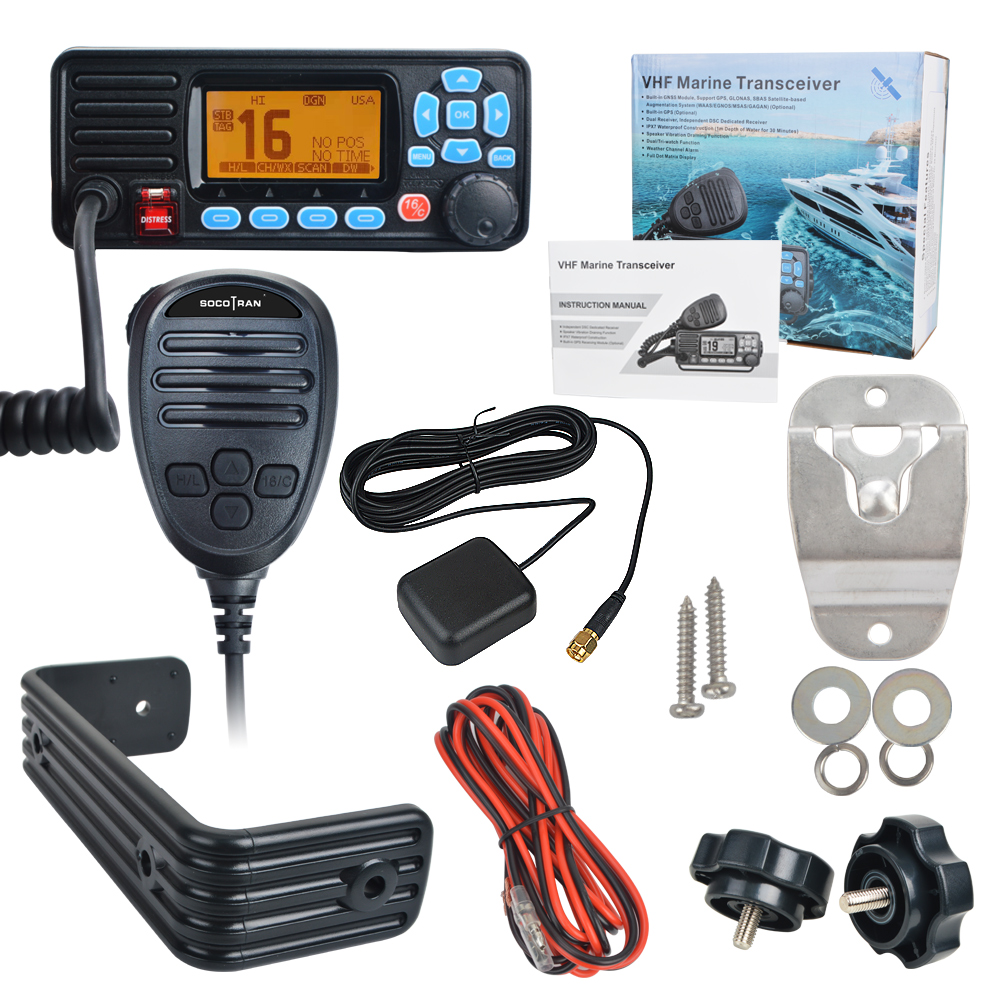

Package Contents:
- 1*Hand Microphone
- 1*Mounting Bracket
- 1*Mounting Screws Package
- 1*DC Power Cable
- 1*Intruction Manual
- 1*GPS Antenna (for RS-509MG only）

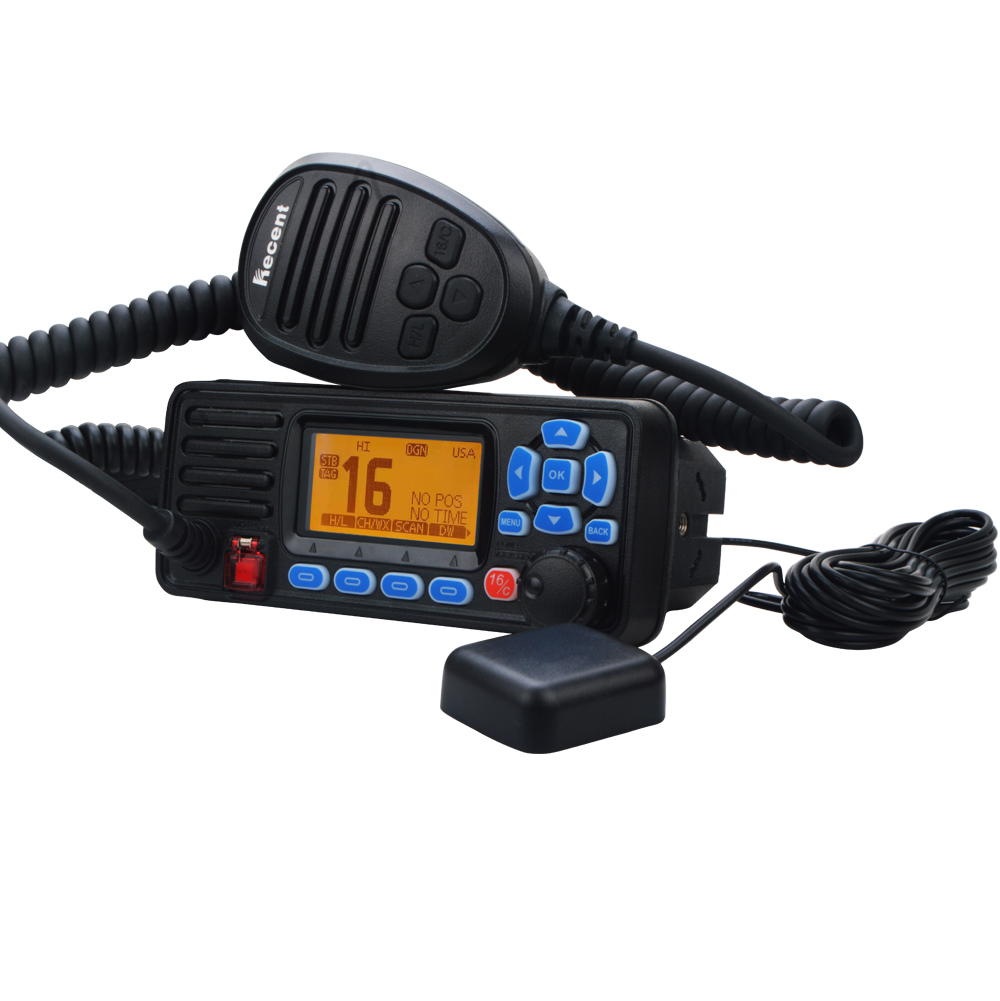

RS-509 VHF Radio with DSC and Built-in GPS
